Demo of lifting error for Michaelis Menten kinetics

In this version of the demo stable fibers are aligned with the coordinates. Thus, the decay to the slow manifold changes mostly the y coordinate, causing only a small shift of the slow coordinate x.

Contents

%#ok<*MINV>
%
clear
addpath('tools');

Define rotation matrix and apply to flow, slow manifold and stable fibers

%[rotmat,coords]=get_rotation('rotmat',eye(2),'names',{'x','y'});
[rotmat,coords]=get_rotation('rotmat',[1,1; -1,1],'names',{'v','w'});
rotinv=inv(rotmat);
map=@(f,x)cell2mat(arrayfun(f,x,'uniformoutput',false));

Microscopic system simulator

ScIVP is a fixed-stepsize RK (Dormand-Prince) integrator. The resulting $M$ is differentiable with respect to x (but not with respect to time, since the number of steps is automatically adjusted with t).

lambda=0.5;
kappa=1;
epsilon=0.01;
ode_rhs=@(x,y)[...
    epsilon*(-x+(x+kappa-lambda).*y);...
    x-(x+kappa).*y];
rk_stepsize=0.1;
hjac=1e-4;
M=@(t,u0)ScIVP(@(t,u)ode_rhs(u(1,:),u(2,:)),u0,[0,t],ceil(abs(t)/rk_stepsize),'rot',rotmat);

Lines widths and colors for plotting

clr=colormap(lines);
ldeco={'linewidth',2};

Generic choice of Lifting, Restriction

R=@(u)u(1,:);
L_level=0.5;
L=@(x)[x;L_level+zeros(size(x))];

Slow manifold h_eps

slow_mf_maple returns the expansion coefficients of the slow manifold in epsilon. h_eps is the graph of the slow manifold, expanded up to 3rd order in epsilon. These functions are in the unrotated (aligned to first order) coordinates x-y.

nx=1001;
xrange=linspace(-0.3,0.5,nx);
sm_eps_order=length(slow_mf_maple(xrange(1),kappa,lambda))-1;
m_epsilon=@(x,ord)x(1:ord+1)*(epsilon.^(0:ord)');
slowmf_xy=@(x)m_epsilon(slow_mf_maple(x,kappa,lambda),sm_eps_order);
slowgraph_xy=@(xr)map(@(x)[x;slowmf_xy(x)],xr);
h_eps=rotmat*slowgraph_xy(xrange);

Stable fibers

xf=fiber_graph_xy(x,y) returns, for a given base point (x,slowmf(x)) on the slow manifold and a deviation y, to which value the x coordinate shifts. So, M(t;(xf,slowmf(x)+y))-M(t;(x,slowmf(x))) goes to zero with decay rate of order 1. The function returns the expansion coefficients in epsilon. These functions are in the unrotated (aligned to first order) coordinates x-y.

fib_eps_order=length(fiber_maple(xrange(1),slowmf_xy(xrange(1)),kappa,lambda))-1;
fiber_xy=@(u)m_epsilon(fiber_maple(u(1),u(2),kappa,lambda),fib_eps_order);
fiber_dev_xy=@(x,ydev)map(@(yd)fiber_xy(slowgraph_xy(x)+[0;yd]),ydev);
fiber_graph_xy=@(x0,ydev)[fiber_dev_xy(x0,ydev);slowmf_xy(x0)+ydev];

Plot basic geometry

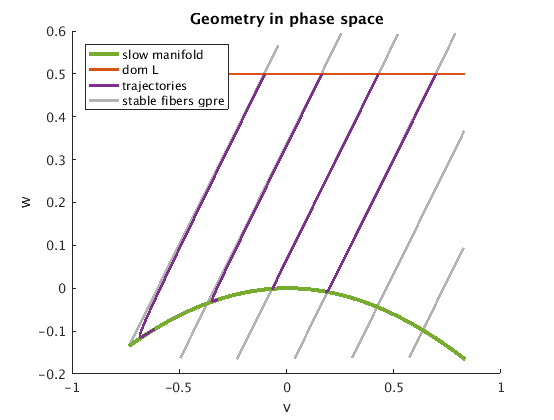

Phase portrait with slow manifold, stable fibers (isochrones) and a few sample trajectories.pbase(1),pgp(1),pV(1),pgpe(1),pVe(1)

plot_geometry;

Select a particular stable fiber and zoom in

The selection is done in the unrotated coordinates. Then the fiber is rotated (to vw_g_pre).

x0=0.2;
xy0=slowgraph_xy(x0);
vw0=rotmat*xy0;
ny=5;
y_dev=linspace(-0.2,0.2,ny);
g_pre=fiber_graph_xy(x0,y_dev);
vw_g_pre=rotmat*g_pre;

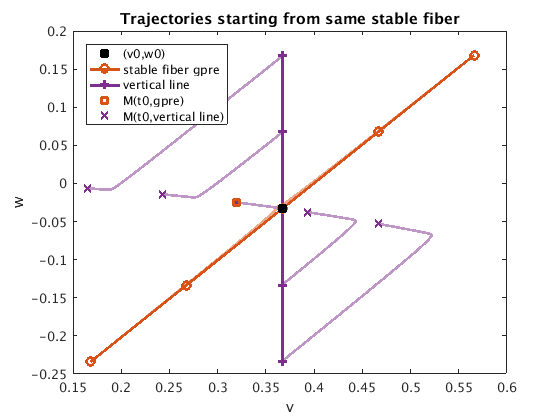

Illustration of stable fiber/isochrone, projection g

We plot the expansion of the stable fiber (isochrone) vw_g_pre (pre-image under g) of (x0,y0)=(0.2,h(0.2)) in rotated coordinates, which is a curve transversal to the slow manifold. We observe how forward trajectories starting from points on this isochrone converge to each other. In contrast, trajectories starting from a set of initial conditions on V={(x0,y): y in R} show long term differences on the order of epsilon (unrotated) and of order 1 (for the rotated coordinates). This demonstrates that V is only a first-order approximation of g_pre, even in the unrotated coordinates.

t0=min(2/(epsilon),-log(eps));
[~,tr,Mg_pre]=M(t0,vw_g_pre);   % forward images of g_pre
[~,~,Mvert]=M(t0,vw0(:,ones(1,ny))+[zeros(1,ny);y_dev]); % forward images of {slow var =const}
plot_fiber_image;

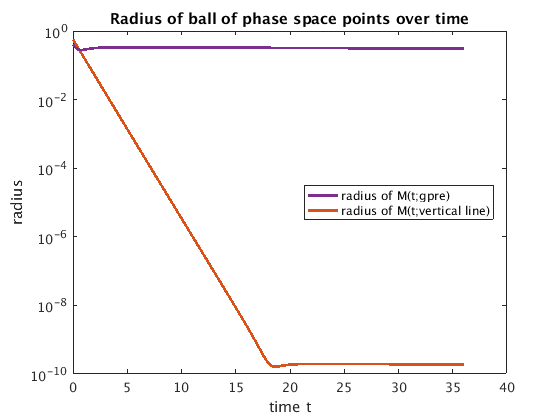

Convergence of trajectories within fiber

The stable fiber g_pre is a 3rd order approximation in epsilon. For non-zero epsilon, trajectories starting on g_pre converge to each other at a rate r of order 1 until exp(rt)~epsilon^3 (about t=10 for epsilon=0.1). In contrast, trajectories starting from V={(x0,y): y in R} only converge to each other until exp(rt)~epsilon.

plot_fiber_convergence;

Comparison of implicitly lifted slow flow Phi_tskip to expansion Phi_star

Nonlinear system, defining implicit slow-flow map

the integration time for Phi_star is close to be of order 1 in the slow time. Since the ODE is written in the fast time, this corresponds to delta=0.25/epsilon. We evaluate the flow at some point vbase in the domain of the lifting operator L. and in the points vbase-hjac, vbase+hjac.

F=@(v1,v0,delta,tskip)R(M(tskip,L(v1)))-R(M(tskip+delta,L(v0)));
delta_test=0.25/epsilon;
vbase=-0.1;
hdev=hjac*[-1,0,1];

Compute the value, first and second derivative of Phi_star and Phi_tskip

by finite differences with deviation about hdev. First the values and derivatives of Phi_star, using the 3rd-order expansion are computed. The result Phi_star_xLfit is 0.5*Phi_star'', Phi_star', and Phi_star in xL.

The stable fiber projection g from dom L onto the slow manifold C_eps={(x,h_eps(x)} may be obtained as the inverse of x->fiber([x;L_level-slowmf(x)]): g(xL)=x0, fiber([x;L_level-slowmf(x)])=g^(-1)(x). A convenient approach to investigating the error of Phi_tskip is to pick a point (x0,slowmf(x0)) on the slow manifold C_eps, then determine xL=fiber([x0;L_level-slowmf(x0)]), which can be used as the argument of Phi_tskip, knowing that the true implicitly defined slow flow is Phi_star=fiber([M(delta;(x0,h_eps(x0))_1;L_level]).

x_g=@(xy)ScSolve(@(x)fiber_xy([x;xy(2)])-xy(1),xy(1),'print',0);
g_proj=@(vw)rotmat*slowgraph_xy(x_g(rotinv*vw));
Phi_star=@(delta,v0)ScSolve(@(v1)R(g_proj(L(v1)))-R(M(delta,g_proj(L(v0)))),v0);
Phi_star_tskip=@(delta,v0,tskip)ScSolve(@(v1)R(M(tskip,(g_proj(L(v1)))))-R(M(delta+tskip,g_proj(L(v0)))),v0);
Phi_star_dev=map(@(v)Phi_star(delta_test,v),vbase+hdev);
Phi_star_fit=polyfit(hdev,Phi_star_dev,2);

it=1, |cor|=0.0893639, |res|=0.138409
it=2, |cor|=0.00420092, |res|=0.00596465
it=3, |cor|=8.08094e-06, |res|=1.14298e-05
it=4, |cor|=2.97421e-11, |res|=4.20671e-11
it=5, |cor|=0, |res|=0
it=1, |cor|=0.0893453, |res|=0.138366
it=2, |cor|=0.00419855, |res|=0.00596083
it=3, |cor|=8.07093e-06, |res|=1.14148e-05
it=4, |cor|=2.96654e-11, |res|=4.19557e-11
it=5, |cor|=7.85e-17, |res|=1.11022e-16
it=1, |cor|=0.0893268, |res|=0.138323
it=2, |cor|=0.00419617, |res|=0.00595702
it=3, |cor|=8.06092e-06, |res|=1.13998e-05
it=4, |cor|=2.95889e-11, |res|=4.18444e-11
it=5, |cor|=7.85057e-17, |res|=1.11022e-16

Compute value, 1st and 2nd derivative of Phi_tskip with respect to its argument v

The derivatives are approximated by finite differences with deviation about hdev. First the true derivative, using the 3rd-order approximation. The result Phi_tskip_fit is 0.5*Phi_tskip'', Phi_tskip', and Phi_tskip in vbase.

nt=15;   % number of healing times to check
% compute approx Phi_tskip for range of healing times tskip
tskipmax=min(30,-log(eps));
tskip=linspace(1,tskipmax,nt);
conv=[];
for i=nt:-1:1
    for j=1:3
        [Phi_tskip_dev(i,j),conv(j)]=ScSolve(@(z)F(z,vbase+hdev(j),delta_test,tskip(i)),vbase);
    end
    Phi_tskip_fit(i,:)=polyfit(hdev,Phi_tskip_dev(i,:),2);
    fprintf('i=%d of %d, tskip=%g, Phi_tskip_fit=(%g,%g,%g) (converged=(%d,%d,%d)\n',...
        i,length(tskip),tskip(i),Phi_tskip_fit(i,:),conv);
end

it=1, |cor|=0.0919834, |res|=0.0969938
it=2, |cor|=0.00148919, |res|=0.0015212
it=3, |cor|=3.84967e-07, |res|=3.93039e-07
it=4, |cor|=2.82729e-14, |res|=2.88658e-14
it=1, |cor|=0.0920599, |res|=0.0970745
it=2, |cor|=0.0014917, |res|=0.00152373
it=3, |cor|=3.86267e-07, |res|=3.94356e-07
it=4, |cor|=2.16403e-14, |res|=2.20934e-14
it=1, |cor|=0.0921365, |res|=0.0971552
it=2, |cor|=0.00149421, |res|=0.00152625
it=3, |cor|=3.87571e-07, |res|=3.95677e-07
it=4, |cor|=2.69695e-14, |res|=2.75335e-14
i=15 of 15, tskip=30, Phi_tskip_fit=(0.113328,0.790427,-0.00644797) (converged=(1,1,1)
it=1, |cor|=0.091836, |res|=0.0991876
it=2, |cor|=0.00163652, |res|=0.00170705
it=3, |cor|=5.06602e-07, |res|=5.2811e-07
it=4, |cor|=4.53693e-14, |res|=4.72955e-14
it=1, |cor|=0.0919123, |res|=0.09927
it=2, |cor|=0.00163927, |res|=0.00170987
it=3, |cor|=5.08302e-07, |res|=5.29867e-07
...

Theoretical asymptotic estimates

We compare the errors to the predicted asymptotic error decay rate. evt computes the eigenvectors of the linearization along the trajectory on the slow manifold, starting from (x0,h_eps(x0))

evt=@(t,x0)sort(eig(ScJacobian(@(x)M(t,x),x0,hjac)));
t_run=delta_test;
ev_exp=evt(t_run,M(0,g_proj(vbase)));
ev=log(ev_exp)/t_run;
d_tr=min(abs(ev(1,:)));  % transversal attraction rate

Logarithmic plot of difference to expansion

plot_lifting_error;

Save all variables, except figures

save_var_names=remove_figures(whos);
save('kinetics_results.mat',save_var_names{:});


Published with MATLAB® R2016a
